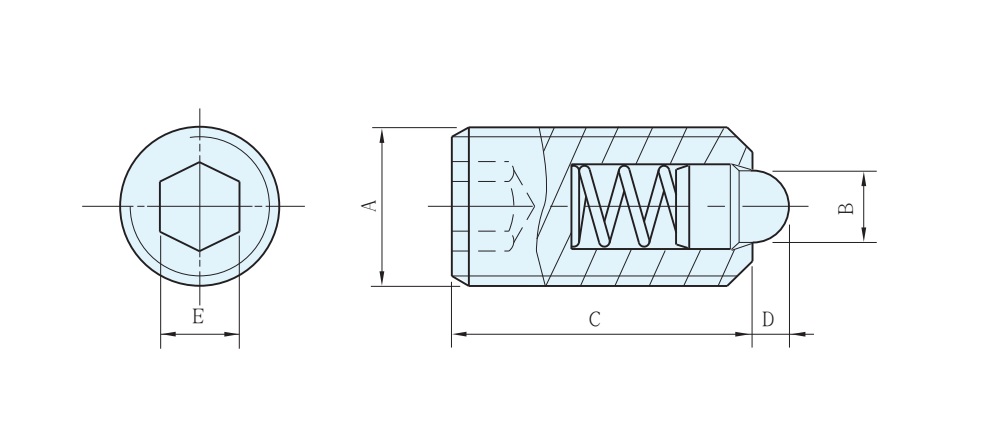

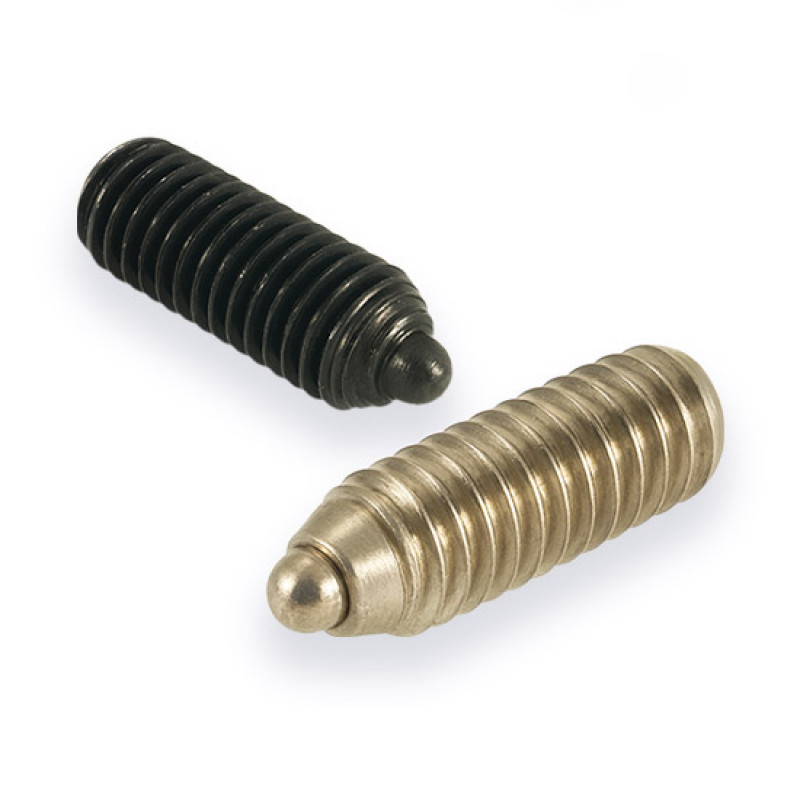

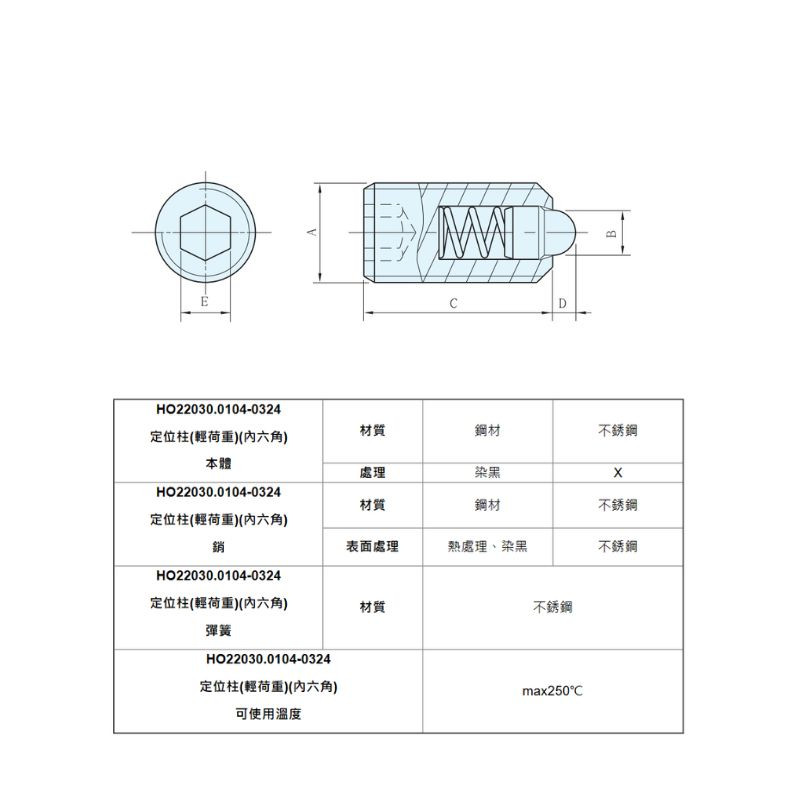

HO22030.0104-0324定位柱(輕荷重)(內六角)
編號：HO22030.0104~HO22030.0124, HO22030.0304~HO22030.0324
1、使用溫度max250℃。
2、1N≒0.102Kgf。
適用於定位、供壓或頂舉
|
鋼材 |
不銹鋼 |
A |
B |
C |
D |
E |
|
品號 |
品號 |
|||||
|
HO22030.0104 |
HO22030.0304 |
M4x0.7 |
1.8 |
12 |
1.5 |
2 |
|
HO22030.0105 |
HO22030.0305 |
M5x0.8 |
2.4 |
14 |
2 |
2.5 |
|
HO22030.0106 |
HO22030.0306 |
M6x1.0 |
2.7 |
15 |
2 |
3 |
|
HO22030.0108 |
HO22030.0308 |
M8x1.25 |
3.8 |
18 |
2 |
4 |
|
HO22030.0110 |
HO22030.0310 |
M10x1.5 |
4.5 |
23 |
2.5 |
5 |
|
HO22030.0112 |
HO22030.0312 |
M12x1.75 |
6.2 |
26 |
3.5 |
6 |
|
HO22030.0116 |
HO22030.0316 |
M16x2.0 |
8.5 |
33 |
4.5 |
8 |
|
HO22030.0120 |
HO22030.0320 |
M20x2.5 |
10 |
43 |
6.5 |
10 |
|
HO22030.0124 |
HO22030.0324 |
M24x3.0 |
13 |
48 |
8 |
12 |
|
鋼材 |
不銹鋼 |
荷重(N) |
質量(g) |
|
品號 |
品號 |
最小~最大 |
|
|
HO22030.0104 |
HO22030.0304 |
4.5~12.5 |
0.6 |
|
HO22030.0105 |
HO22030.0305 |
5~13 |
1.1 |
|
HO22030.0106 |
HO22030.0306 |
6~17 |
2 |
|
HO22030.0108 |
HO22030.0308 |
16~33 |
4 |
|
HO22030.0110 |
HO22030.0310 |
19~42 |
8 |
|
HO22030.0112 |
HO22030.0312 |
22~57 |
12 |
|
HO22030.0116 |
HO22030.0316 |
38~78 |
31 |
|
HO22030.0120 |
HO22030.0320 |
39~81 |
64 |
|
HO22030.0124 |
HO22030.0324 |
72~155 |
100 |
※ 1N≒0.102Kgf
