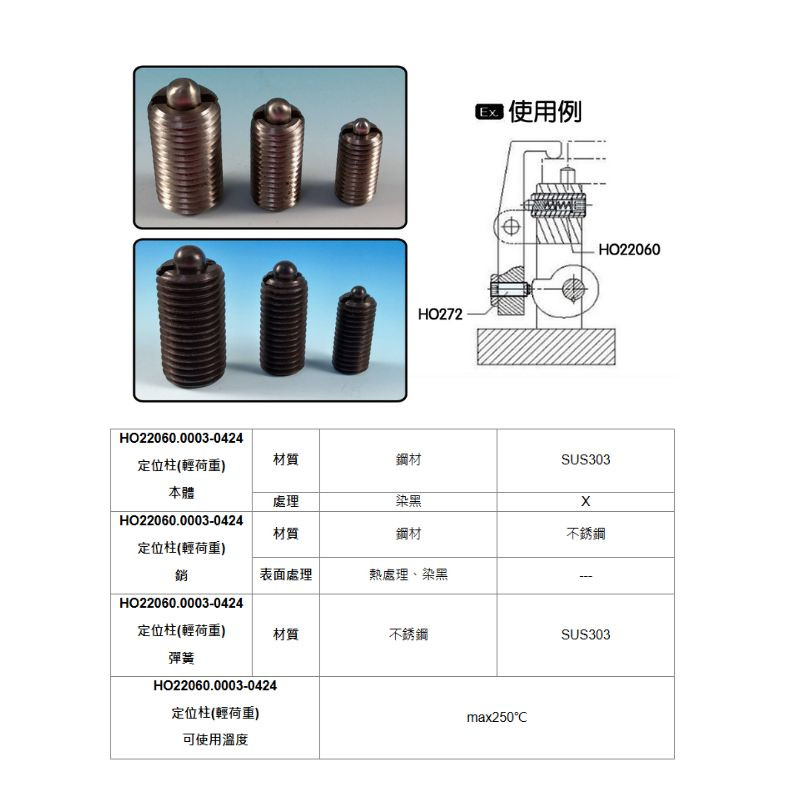

HO22060.0003-0420定位柱(輕荷重)
編號：HO22060.0003-0420

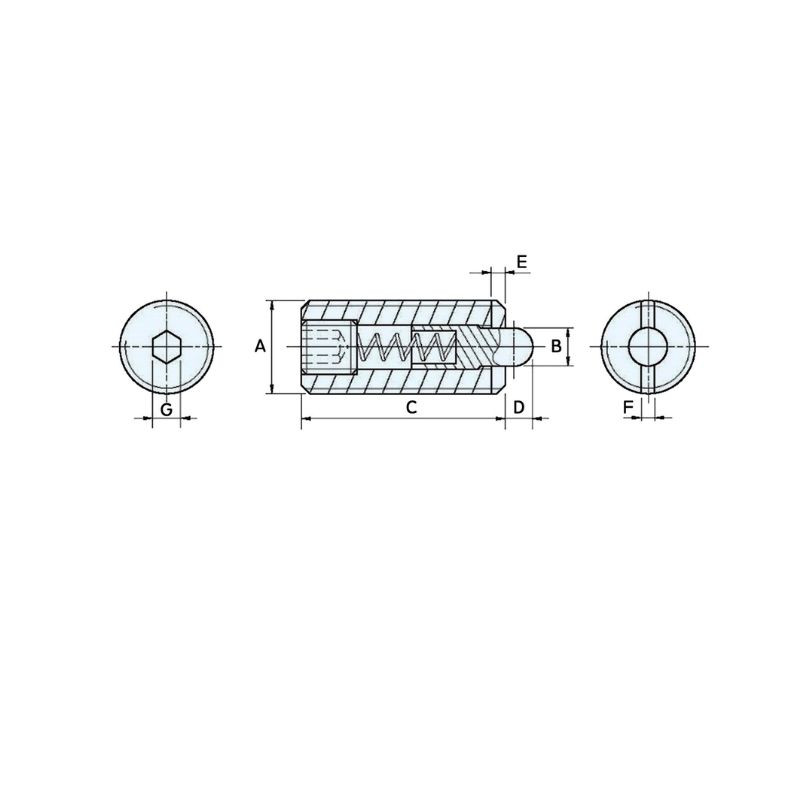

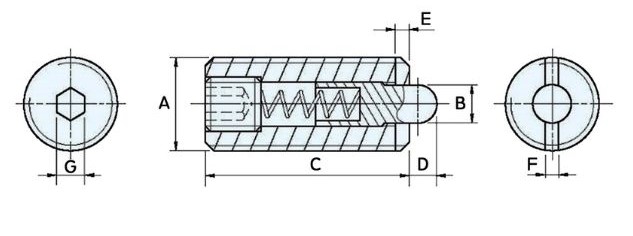

組裝: 定位柱可藉由溝槽或內六角來固定及移除。利用專用工具在溝槽上固定 (頂銷端)。
|
鋼材 |
不銹鋼 |
A |
B |
C |
D |
|
品號 |
品號 |
||||
|
HO22060.0003 |
--- |
M3x0.5 |
1.0 |
12 |
1.0 |
|
HO22060.0004 |
HO22060.0404 |
M4x0.7 |
1.5 |
15 |
1.5 |
|
HO22060.0005 |
HO22060.0405 |
M5x0.8 |
2.4 |
18 |
2.3 |
|
HO22060.0006 |
HO22060.0406 |
M6x1.0 |
2.7 |
20 |
2.5 |
|
HO22060.0008 |
HO22060.0408 |
M8x1.25 |
3.5 |
22 |
3.0 |
|
HO22060.0010 |
HO22060.0410 |
M10x1.5 |
4.0 |
22 |
3.0 |
|
HO22060.0012 |
HO22060.0412 |
M12x1.75 |
6.0 |
28 |
4.0 |
|
HO22060.0016 |
HO22060.0416 |
M16x2.0 |
7.5 |
32 |
5.0 |
|
HO22060.0020 |
HO22060.0420 |
M20x2.5 |
10.0 |
40 |
7.0 |
|
HO22060.0024 |
--- |
M24x3.0 |
12.0 |
52 |
10.0 |
|
鋼材 |
不銹鋼 |
E |
F |
G |
荷重(N) |
質重(g) |
|
品號 |
品號 |
最小~最大 |
||||
|
HO22060.0003 |
--- |
0.5 |
0.4 |
0.7 |
2~4 |
0.4 |
|
HO22060.0004 |
HO22060.0404 |
0.6 |
0.6 |
1.3 |
4.5~16 |
0.8 |
|
HO22060.0005 |
HO22060.0405 |
0.8 |
1.2 |
1.5 |
6~19 |
1.3 |
|
HO22060.0006 |
HO22060.0406 |
0.9 |
1.3 |
2.0 |
6~19 |
2.5 |
|
HO22060.0008 |
HO22060.0408 |
1.4 |
1.5 |
2.5 |
10~39 |
6.0 |
|
HO22060.0010 |
HO22060.0410 |
1.4 |
1.5 |
3.0 |
10~39 |
9.0 |
|
HO22060.0012 |
HO22060.0412 |
2.0 |
2.7 |
4.0 |
12~53 |
16.0 |
|
HO22060.0016 |
HO22060.0416 |
2.5 |
3.2 |
5.0 |
45~100 |
35.0 |
|
HO22060.0020 |
HO22060.0420 |
3.0 |
3.7 |
6.0 |
52~125 |
65.0 |
|
HO22060.0024 |
--- |
3.0 |
3.7 |
8.0 |
70~170 |
120.0 |
尺寸單位: MM。
