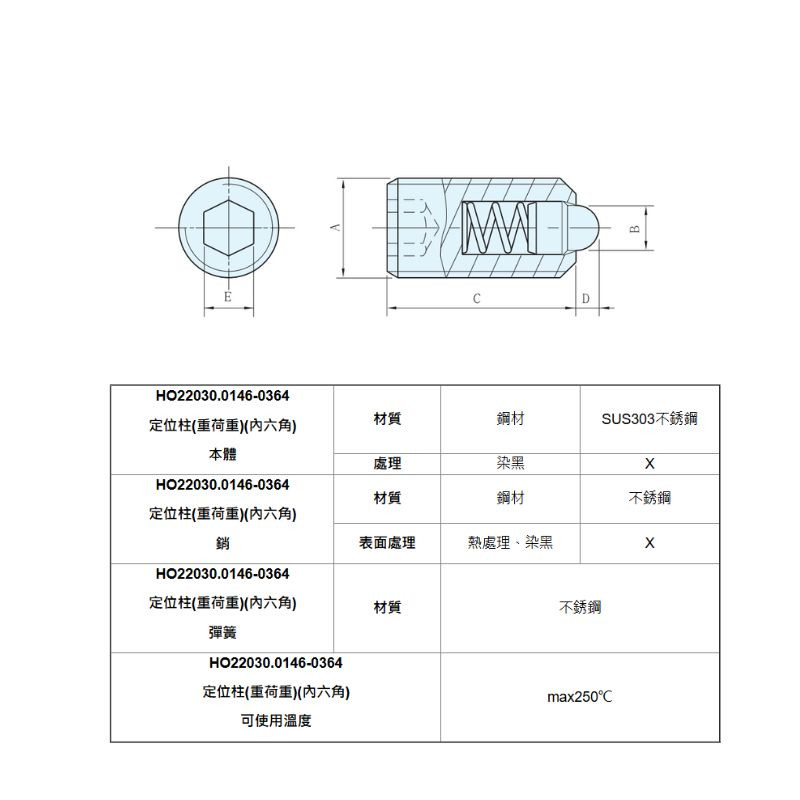

HO22030.0146-0364定位柱(重荷重)(內六角)
編號：HO22030.0146~HO22030.0164, HO22030.0346~HO22030.0364
1、使用溫度max250℃。
2、1N≒0.102Kgf。
適用於定位、供壓或頂舉。
|
鋼材 |
不銹鋼 |
A |
B |
C |
D |
E |
|
品號 |
品號 |
|||||
|
HO22030.0146 |
HO22030.0346 |
M6x1.0 |
2.7 |
15 |
2 |
3 |
|
HO22030.0148 |
HO22030.0348 |
M8x1.25 |
3.8 |
18 |
2 |
4 |
|
HO22030.0150 |
HO22030.0350 |
M10x1.5 |
4.5 |
23 |
2.5 |
5 |
|
HO22030.0152 |
HO22030.0352 |
M12x1.75 |
6.2 |
26 |
3.5 |
6 |
|
HO22030.0156 |
HO22030.0356 |
M16x2.0 |
8.5 |
33 |
4.5 |
8 |
|
HO22030.0160 |
HO22030.0360 |
M20x2.5 |
10 |
43 |
6.5 |
10 |
|
HO22030.0164 |
HO22030.0364 |
M24x3.0 |
13 |
48 |
8 |
12 |
|
鋼材 |
不銹鋼 |
荷重(N) |
質量(g) |
|
品號 |
品號 |
最小~最大 |
|
|
HO22030.0146 |
HO22030.0346 |
11~25 |
2 |
|
HO22030.0148 |
HO22030.0348 |
23~59 |
4 |
|
HO22030.0150 |
HO22030.0350 |
20~54 |
8 |
|
HO22030.0152 |
HO22030.0352 |
38~96 |
12 |
|
HO22030.0156 |
HO22030.0356 |
50~100 |
31 |
|
HO22030.0160 |
HO22030.0360 |
52~133 |
64 |
|
HO22030.0164 |
HO22030.0364 |
91~223 |
100 |
※ 1N≒0.102Kgf
