HO22070.0610-0634 定位柱(輕荷重)(本體熱處理)
編號：HO22070.0610,HO22070.0612,HO22070.0614,HO22070.0616,HO22070.0630,HO22070.0632,HO22070.0634
|

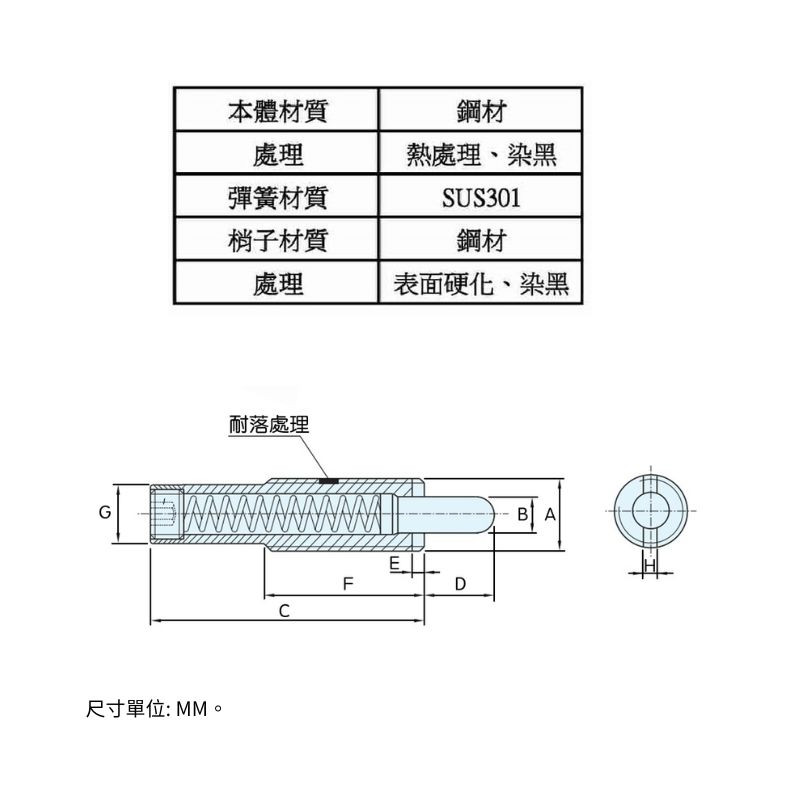

型號 |
A |
B |
C |
D |
E |
F |
|
HO22070.0610 |
M16X2.0 |
7.3 |
80 |
11 |
3 |
35 |
|
HO22070.0612 |
M16X2.0 |
7.3 |
120 |
21 |
3 |
35 |
|
HO22070.0614 |
M16X2.0 |
7.3 |
150 |
31 |
3 |
35 |
|
HO22070.0616 |
M16X2.0 |
7.3 |
200 |
41 |
3 |
35 |
|
HO22070.0630 |
M22X2.5 |
9.0 |
130 |
21 |
4 |
50 |
|
HO22070.0632 |
M22X2.5 |
9.0 |
168 |
31 |
4 |
50 |
|
HO22070.0634 |
M22X2.5 |
9.0 |
226 |
41 |
4 |
50 |
|
型號 |
G |
H |
荷重(N) 最小~最大 |
重量 (g) |
專用扳手 |
|
HO22070.0610 |
13.4 |
3.0 |
17~74 |
75 |
HO22070.0834 |
|
HO22070.0612 |
13.4 |
3.0 |
21~81 |
100 |
HO22070.0834 |
|
HO22070.0614 |
13.4 |
3.0 |
21~89 |
125 |
HO22070.0834 |
|
HO22070.0616 |
13.4 |
3.0 |
16~80 |
170 |
HO22070.0834 |
|
HO22070.0630 |
19.0 |
3.5 |
80~214 |
215 |
HO22070.0836 |
|
HO22070.0632 |
19.0 |
3.5 |
70~210 |
280 |
HO22070.0836 |
|
HO22070.0634 |
19.0 |
3.5 |
76~208 |
360 |
HO22070.0836 |
- 尺寸單位:MM。
