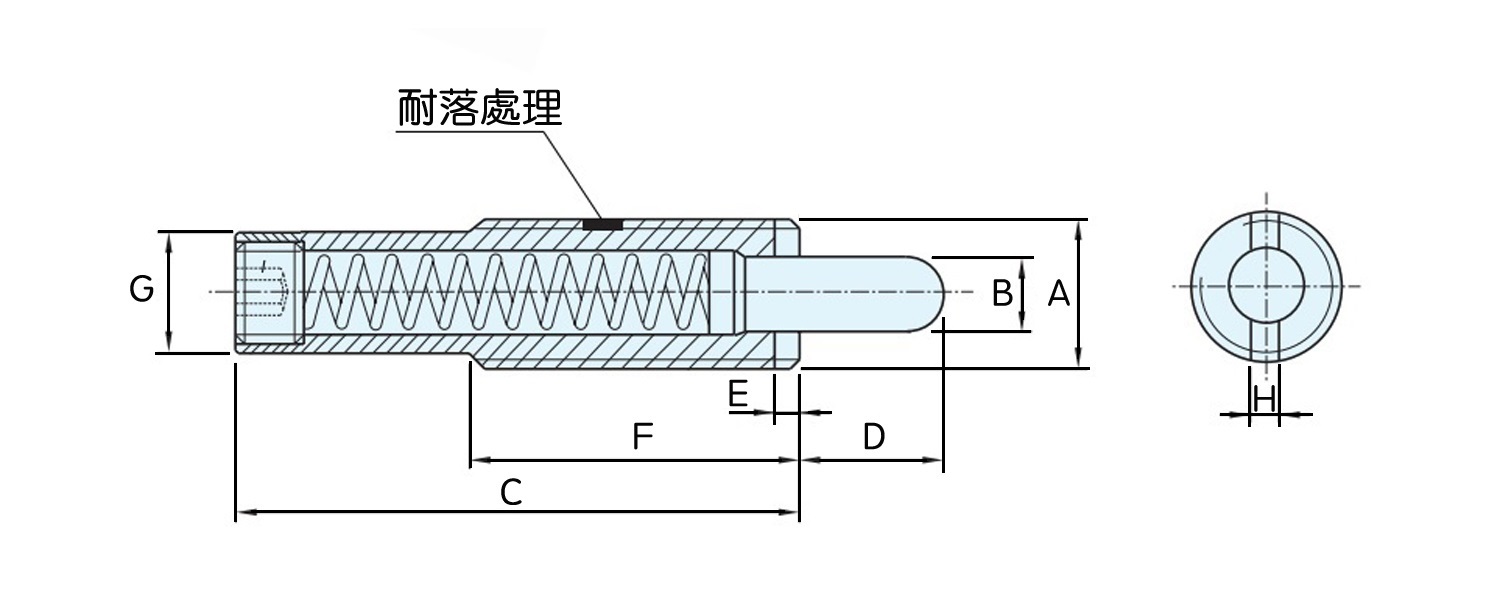

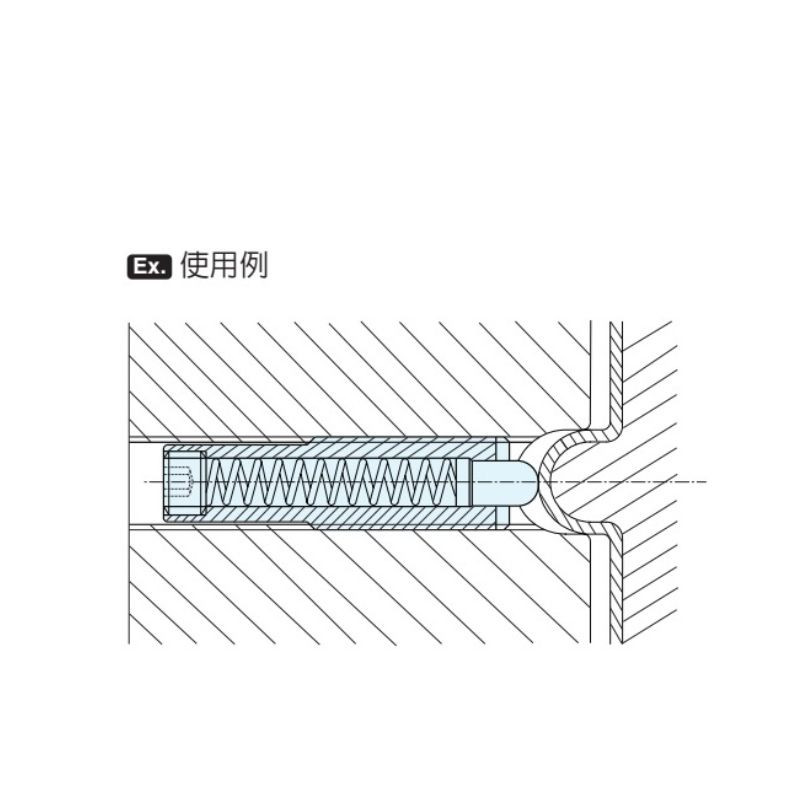

HO22070.0512-0580 定位柱(重荷重)
編號：HO22070.0512,HO22070.0530,HO22070.0532,HO22070.0536,HO22070.0542,HO22070.0544,HO22070.0550,HO22070.0555,HO22070.0560,HO22070.0580
- 尺寸單位: MM。
|
定位柱(重荷重) 型號 |
A |
B |
C |
D |
E |
F |
|
HO22070.0512 |
M12X1.75 |
5.5 |
43 |
10 |
2 |
35 |
|
HO22070.0530 |
M16X2.0 |
8.0 |
48 |
10 |
3 |
35 |
|
HO22070.0532 |
M16X2.0 |
8.0 |
58 |
10 |
3 |
35 |
|
HO22070.0536 |
M16X2.0 |
8.0 |
58 |
15 |
3 |
35 |
|
HO22070.0542 |
M16X2.0 |
8.0 |
83 |
20 |
3 |
35 |
|
HO22070.0544 |
M16X2.0 |
8.0 |
98 |
25 |
3 |
35 |
|
HO22070.0550 |
M16X2.0 |
8.0 |
98 |
30 |
3 |
35 |
|
HO22070.0555 |
M16X2.0 |
8.0 |
148 |
40 |
3 |
35 |
|
HO22070.0560 |
M16X2.0 |
8.0 |
148 |
50 |
3 |
35 |
|
HO22070.0580 |
M24X3.0 |
10.0 |
60 |
15 |
3 |
45 |
|
型號 |
G |
H |
荷重(N) 最小~最大 |
重量 (g) |
專用扳手 |
|
HO22070.0512 |
9.5 |
2.7 |
7~46 |
23 |
HO22070.0832 |
|
HO22070.0530 |
13.4 |
3.2 |
10~43 |
42 |
HO22070.0834 |
|
HO22070.0532 |
13.4 |
3.2 |
14~84 |
53 |
HO22070.0834 |
|
HO22070.0536 |
13.4 |
3.2 |
10~57 |
55 |
HO22070.0834 |
|
HO22070.0542 |
13.4 |
3.2 |
18~72 |
71 |
HO22070.0834 |
|
HO22070.0544 |
13.4 |
3.2 |
20~70 |
78 |
HO22070.0834 |
|
HO22070.0550 |
13.4 |
3.2 |
20~80 |
80 |
HO22070.0834 |
|
HO22070.0555 |
13.4 |
3.2 |
21~113 |
123 |
HO22070.0834 |
|
HO22070.0560 |
13.4 |
3.2 |
13~75 |
127 |
HO22070.0834 |
|
HO22070.0580 |
19.6 |
3.7 |
24~192 |
115 |
HO22070.0838 |
