HAMBP、HAMBPS一字型定位珠重荷重
編號：HAMBP-05, HAMBP-06, HAMBP-08, HAMBP-10,HAMBP-12, HAMBP-16, HAMBP-20, HAMBP-24, HAMBPS-05, HAMBPS-06, HAMBPS-08, HAMBPS-10, HAMBPS-12, HAMBPS-16, HAMBPS-20
|

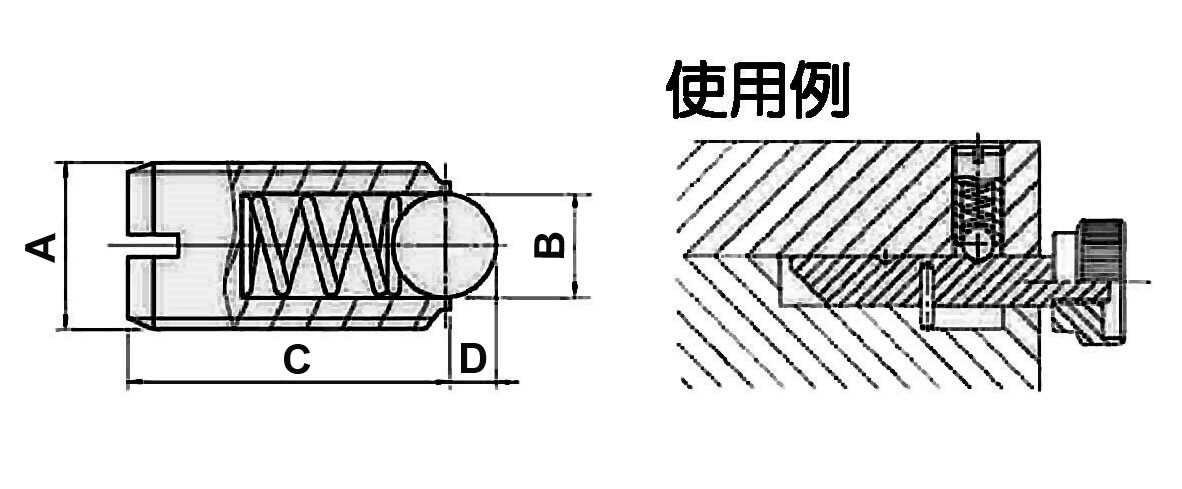

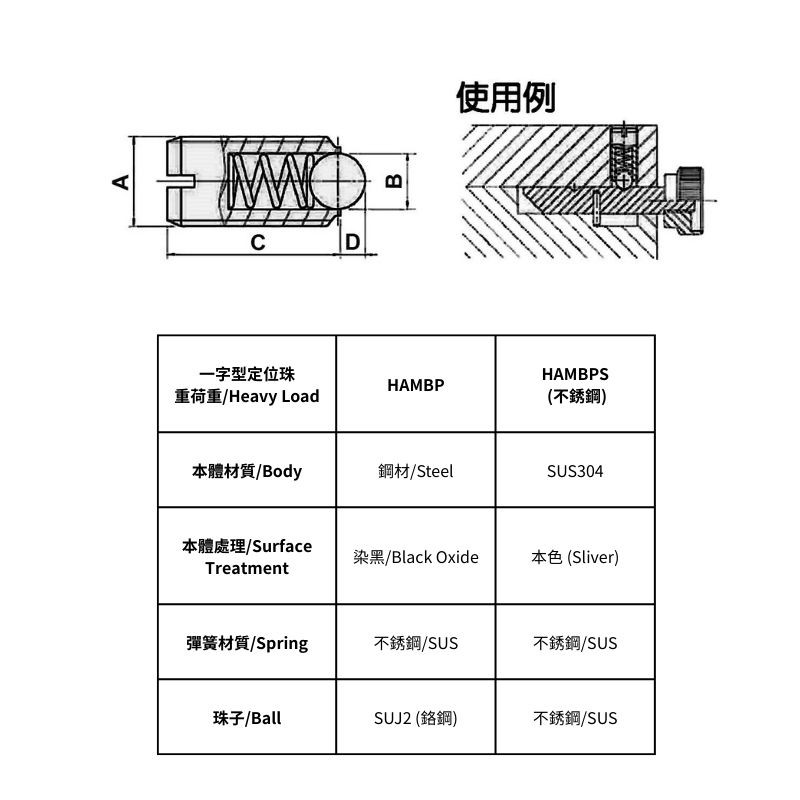

型號(鋼材) |
型號(不鏽鋼) |
A |
B |
C |
D |
荷重(N) |
Max. |
重量 |
|
|
HAMBP-05 |
HAMBPS-05 |
M 5x0.8 |
3.0 |
12 |
0.9 |
15~22 |
250℃ |
0.9 |
|
|
HAMBP-06 |
HAMBPS-06 |
M 6x1.0 |
3.5 |
14 |
1.0 |
19~28 |
1.5 |
||
|
HAMBP-08 |
HAMBPS-08 |
M 8x1.25 |
4.5 |
16 |
1.5 |
36~62 |
3.5 |
||
|
HAMBP-10 |
HAMBPS-10 |
M 10x1.5 |
6.0 |
19 |
2.0 |
57~104 |
7.0 |
||
|
HAMBP-12 |
HAMBPS-12 |
M 12x1.75 |
8.0 |
22 |
2.5 |
61~110 |
10.0 |
||
|
HAMBP-16 |
HAMBPS-16 |
M 16x2.0 |
10.0 |
24 |
3.5 |
68~142 |
24.0 |
||
|
HAMBP-20 |
HAMBPS-20 |
M 20x2.5 |
12.0 |
30 |
4.5 |
84~166 |
43.0 |
||
|
HAMBP-24 |
HAMBPS-24 |
M24x3.0 |
15.0 |
34 |
5.5 |
127~237 |
70.0 |
* 尺寸單位為MM
