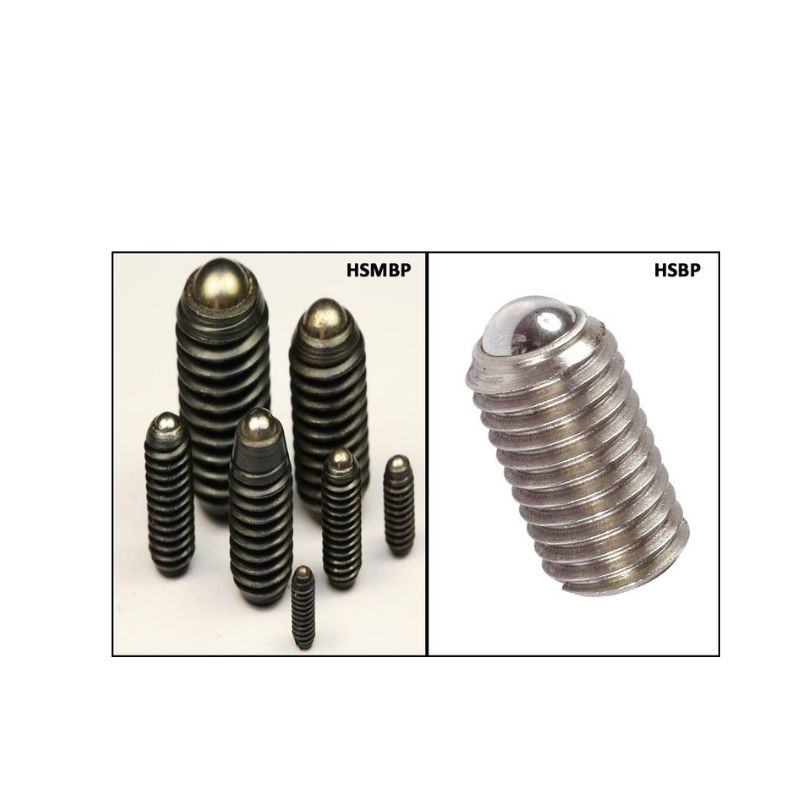

HSBP, HSMBP一字型定位珠輕荷重
編號：HSMBP-03, HSMBP-04, HSMBP-05, HSMBP-06, HSMBP-08, HSMBP-10, HSMBP-12, HSMBP-16, HSMBP-20, HSMBP-24, HSBP-03, HSBP-04, HSBP-05, HSBP-06, HSBP-08, HSBP-10, HSBP-12, HSBP-16, HSBP-20, HSBP-24
|
型號(鋼材) |
型號(不鏽鋼) |
A |
B |
C |
D |
荷重(N) |
Max. |
重量 |
|
HSMBP-03 |
HSBP-03 |
M3x0.5 |
1.5 |
7 |
0.4 |
3~4.5 |
250℃ |
0.3 |
|
HSMBP-04 |
HSBP-04 |
M4x0.7 |
2.5 |
9 |
0.8 |
8.5~14 |
0.6 |
|
|
HSMBP-05 |
HSBP-05 |
M 5x0.8 |
3.0 |
12 |
0.9 |
8~14 |
0.9 |
|
|
HSMBP-06 |
HSBP-06 |
M 6x1.0 |
3.5 |
14 |
1.0 |
11~18 |
1.5 |
|
|
HSMBP-08 |
HSBP-08 |
M 8x1.25 |
4.5 |
16 |
1.5 |
18~31 |
3.5 |
|
|
HSMBP-10 |
HSBP-10 |
M 10x1.5 |
6.0 |
19 |
2.0 |
24~45 |
7.0 |
|
|
HSMBP-12 |
HSBP-12 |
M 12x1.75 |
8.0 |
22 |
2.5 |
26~49 |
10.0 |
|
|
HSMBP-16 |
HSBP-16 |
M 16x2.0 |
10.0 |
24 |
3.5 |
41~86 |
24.0 |
|
|
HSMBP-20 |
HSBP-20 |
M 20x2.5 |
12.0 |
30 |
4.5 |
56~111 |
43.0 |
|
|
HSMBP-24 |
HSBP-24 |
M24x3.0 |
15.0 |
34 |
5.5 |
81~151 |
70.0 |
* 尺寸單位為MM。
